DT/DTM/TDTP SERIES
產品規格書（PDF）
DT/DTM/TDTP -SPC?

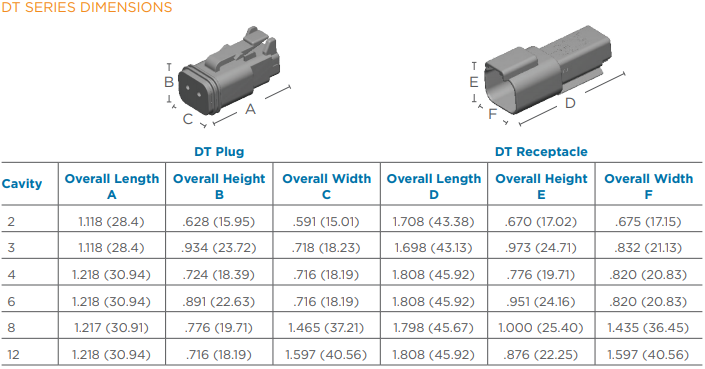

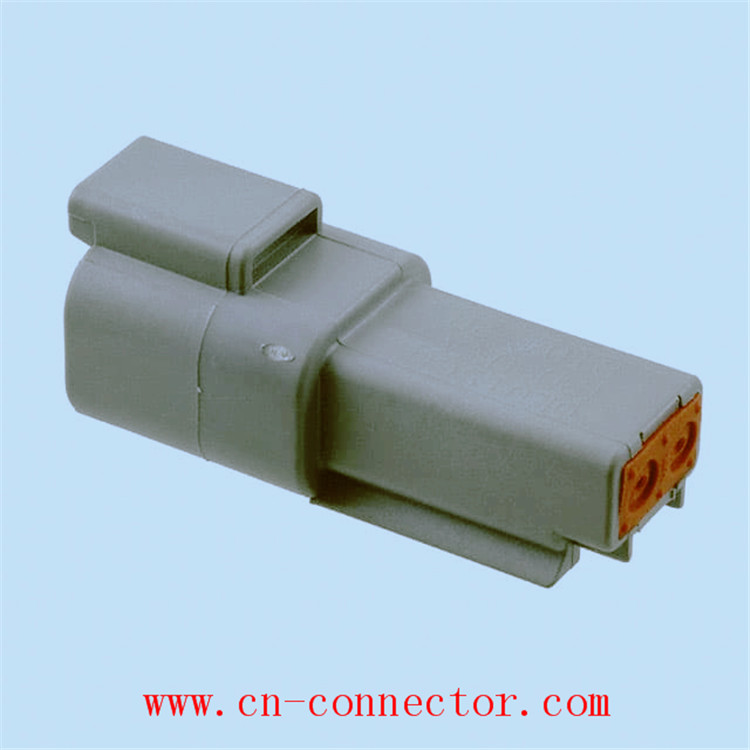

DT Series
• Accepts contact size 16 (13 amps)
• 14-20 AWG (2.00-0.50 mm2)
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, flange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention

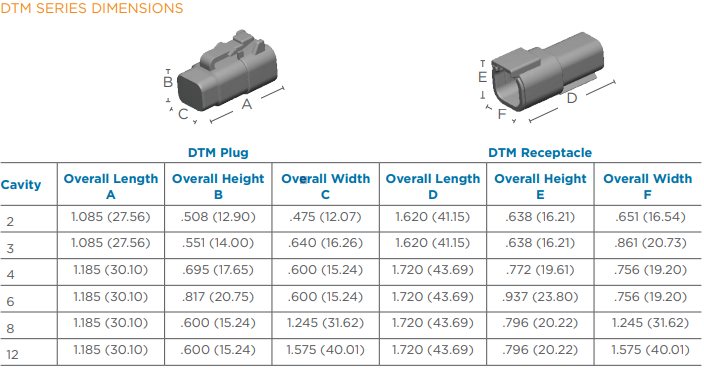

DTM Series
• Accepts contact size 20 (7.5 amps)
• 14-22 AWG (2.50-0.35 mm2)
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, flange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention

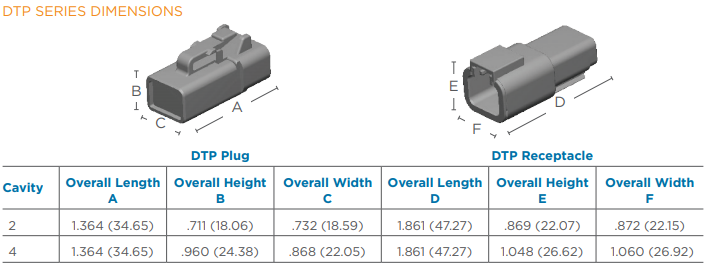

DTP Series
• Accepts contact size 12 (25 amps)
• 10-14 AWG (6.00-2.00 mm2)
• 2 and 4 cavity arrangements
• In-line, flange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention
